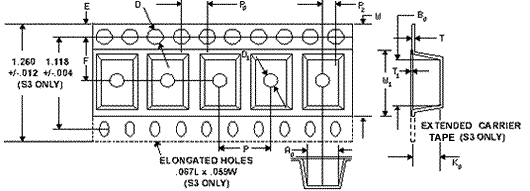

EIA-481-A
Dimension

S1/2 (12MM)

S1 (16MM)

S2 (24MM)

S3 (32MM)

A₀

.128 ± .004

.154 ± .004

.245 ± .004

.290 ± .004

B₀

.215 ± .004

.274 ± .004

.494 ± .004

.615 ± .004

K₀

.123 ± .004

.145 ± .004

.222 ± .004

.280 ± .004

P

.315 ± .004

.315 ± .004

.472 ± .004

.630 ± .004

P₂

.079 ± .002

.079 ± .002

.079 ± .002

.079 ± .002

P₀

.157 ± .004

.157 ± .004

.157 ± .004

.157 ± .004

D

.059 ± .004

.059 ± .004

.059 ± .004

.059 ± .004

D₁

.059 MIN

.059 MIN

.059 MIN

.079 MIN

E

.069 ± .004

.069 ± .004

.069 ± .004

.069 ± .004

F

.217 ± .004

.295 ± .004

.453 ± .004

.559 ± .004

W

.472 ± .012

.630 ± .012

.945 ± .012

N/A

W₁

.375 MAX

.532 MAX

.852 MAX

1.008 MAX

T₁

.004 MAX

.004 MAX

.004 MAX

.004 MAX

T

.016 MAX

.016 MAX

.016 MAX

.016 MAX
