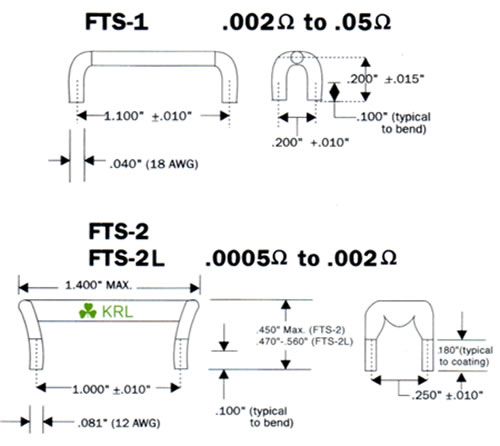

4 Terminal Shunt Power Resistors
(FTS Series)

Four Terminal Shunt Resistors4 shunt


  • Radial, Self-Supporting, PC Board Mounting
  • High Power to Size Ratio
  • Min. Wattage: FTS-1 = 1W; FTS-2, FTS-2L= 5W
  • Decimal Marked, Silicone Coated (FTS-2, FTS-2L only)
  • Std. Tolerances: ±0.5% to ±10%
  • RoHS compliant, Pb-Free construction available
  • Operating Range -55°C to +275°C
  • Temperature Coefficient, 0°C to 85°C:  Below .015Ω: ±100 ppm/°C .015Ω and Higher: ±50 ppm/°C
  • Maximum Current: 32 AMPS for FTS-1; 100 AMPS for FTS-2
