Ceramic Encased Power Resistors

Axial Lead Wirewound &
Low OHM Ceramic Boat Resistors

• Wirewound Construction Typically Above .1Ω (CB Style)
• Metal Element Construction Typically .1Ω and Below (LB and LB(4) Styles.)
• Specify Style LB(4) for 4-Terminal Construction
• Fireproof Construction
• Standard Tolerances ±5%, ±3%, ±1%; available to ±.1%.
• RoHS compliant, Pb-Free construction available.
• Standard Temperature Coefficient: ±30 ppm above 1Ω ; ±100ppm .1Ω to 1Ω ; ± 400ppm below .1Ω ; ±60ppm for style LB(4) all values.
• Dielectric Withstanding Voltage: 1500V AC Minimum.
• 16 AWG (.051) Axial Leads Available for High Current Applications

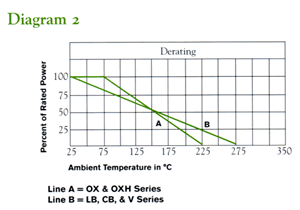

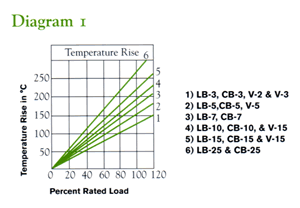

• See Temperature Rise and Derating Diagrams Below.

*20 AWG Style LB, 24 AWG Style CB
**18 AWG Style LB, 20AWG Style CB

VERTICAL MOUNT CERAMIC BOAT RESISTORS

Wirewound construction typically above .1Ω;
Metal element construction .1Ω and below.
Fireproof Construction.
Space Saving Design.
Standard Tolerances ±5%, ±3%, ±1%.
RoHS compliant, Pb-Free construction available
Standard temperature coefficient ±30 ppm above 1Ω; ±100 ppm .1Ω to 1Ω; ±400 ppm below .1Ω.
Dielectric withstanding voltage 1500 AC minimum.
See temperature rise and derating diagrams below.
Maximum Current = 25 Amps; 16 AWG or 18 AWG leads available for high current applications.

Note:  Most of the above styles may be ordered with the following options:  ( F ) for custom fusing action; (TF ) for failsafe Thermal Fuse Applications (See Below for TF construction).
