FEATURES
- UL94-V0 Molded Chip Design
- Low TC'S & Tight Tolerances
- Temperature Compensating TC'S to +6000 PPM Available
- RoHS compliant, Pb-Free construction available
TEMPERATURE COEFFICIENT
- ±25 PPM/°C 1Ω to 10 Ω; ±10PPM/°C above 10Ω
(Avail. to< 2PPM> ± 2PPM/°C)

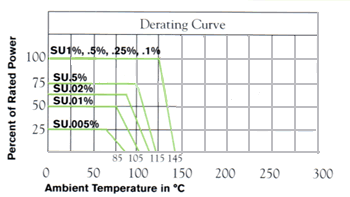

| KRL STYLE |
WATTS | STD TOL | OHMIC RANGE |
WORKING VOLTAGE |
|---|---|---|---|---|
| SU-1 | 0.125 | ± .005% thru ± 1.0% |
1.0Ω-300kΩ; | 100 |
| SU-2 | 0.25 | 1.0Ω-1MΩ; | 300 | |
| SU-3 | 0.5 | 1.0Ω-2MΩ; | 400 |
| Dimensions & Suggested Land Patterns (per ANSI/IPC-SM-782 Guidelines) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
||||||||||||
| KRL STYLE | A ± .005" | B ± .015" | C ± .010" | D ± .015" | E ± .005" | F ± .005" | G ± .015" | H | I | J | X | Y |
| SU-1 | .250 | .272 | .050 | .140 | .130 | .140 | .060 | .120 | .310 | .215 | .075 | .095 |
| SU-2 | .435 | .455 | .070 | .210 | .200 | .230 | .065 | .280 | .510 | .395 | .090 | .115 |
| SU-3 | .575 | .600 | .050 | .255 | .250 | .275 | .075 | .465 | .655 | .560 | .105 | .095 |
|
|
||||||||||||||||||||||
